Euro 11300™ AW-Rated Window System

Architectural Series for Mid & High-Rise Buildings

AW-rated commercial window system with patented dual co-extruded SuperCapSR™ colour technology. Developed for use in mid- and high-rise commercial buildings. Ideal for both new construction and replacement applications.

Get Commercial Quote778-806-2724
Euro 11300 Commercial Window System - European tilt-and-turn window

Available Configurations

The Euro 11300™ system can be configured in multiple operation styles.

Tilt-N-Turn (Dual-Action)

Sash tilts inward at top for secure ventilation or turns inward for wide opening

Casement/Awning

Classic operation with modern AW-rated performance

Fixed Window

Maximum daylight with superior thermal performance

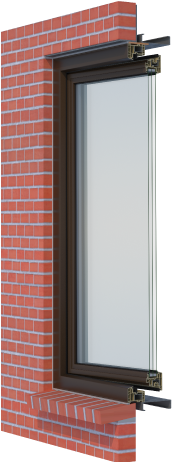

Euro 11300 Tilt-Turn Closed

Tilt-N-Turn Closed Position

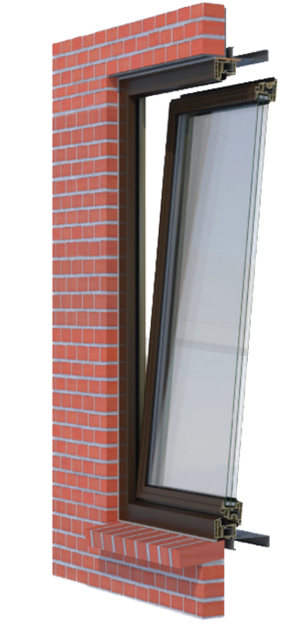

Euro 11300 Tilt-Turn Open

Tilt-N-Turn Open Position

Euro 11300 Schematic

System Schematic

Standard Features

The energy standards are evolving. Shouldn't your windows?

3-1/4" (83mm) frame depth with dual-colour finishes
Maximum of 1-5/8" (42mm) insulated glass unit
Designed to be glazed from either interior or exterior
Engineered profile compartments for optimal foam-fill capabilities
Multi-chamber frame and sash profiles for added structural strength
Frame and sash hollow compartments for optimal reinforcements
Compression-seal window design enhances water protection
Vinyl frames resist condensation, reducing water damage risk
Multiple locking points and triple weather-seals
Hardware allows tilt inward or turn inward for emergency egress

Distinctive Advantages

Thermal performance, design versatility and structural strength make this window system a great choice for new construction or replacement applications meeting AW performance-grade requirements governed by NAFS.

3-1/4" (83mm) frame depth ideal for new construction and replacement
Accommodates up to 1-5/8" (42mm) insulating glass unit
Interior and exterior glazing option for versatility
Accommodates multiple reinforcing material options
.100" (2.5mm) main wall thickness optimized for structural strength
In triple-pane configurations achieves below NFRC .20 U-Factor
9.3 sq. ft. daylight opening on 3' x 5' window
Optimal mix of strength, energy performance and aesthetics
Integral interior and exterior perimeter accessory groove
T-bar for mulling and stacking
Continuous compression weather seal on frame and sash
Common frame on all four sides for ease of manufacture
Patented dual co-extruded SuperCapSR™ colour technology
Centre seal to protect hardware
Accepts standard multi-lock hardware

Finish Options

SuperCapSR™ dual colour technology uses military infrared reflective technology to help absorb less heat and prevent heat-related profile distortion.

Mikronblend® Solid Vinyl

WhiteAlmondAdobe

SuperCapSR™ Dual Colour

SilverAdobeBronzeBlack

Euro 11300 Projects

See how our products transform homes across Greater Vancouver.

Modern Contemporary Home

Modern Contemporary Home

European-style tilt-turn windows on modern facade.

Vancouver, BC

Contemporary Estate

Contemporary Estate

Euro 11300 windows for spacious contemporary estate.

North Vancouver, BC

Commercial Office Building

Commercial Office Building

European tilt-turn windows for modern office complex.

Vancouver, BC

View All Projects

Specify Thermal Performance, Design Versatility & Structural Strength

Contact us for commercial project quotes. Our premium vinyl window frames far exceed aluminum on thermal performance while meeting the highest structural standards.
